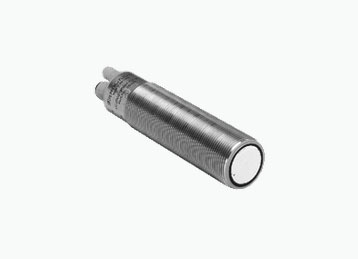

| General specifications |
| Sensing range |
80 ... 2000 mm |
| Adjustment range |
120 ... 2000 mm |
| Dead band |
0 ... 80 mm |
| Standard target plate |
100 mm x 100 mm |
| Transducer frequency |
approx. 180 kHz |
| Response delay |
65 ms minimum
195 ms factory setting |
| Indicators/operating means |
| LED green |
solid: Power-on
flashing: Standby mode or program function object detected |
| LED yellow 1 |
solid: object in evaluation range
flashing: program function |
| LED yellow 2 |
solid: object in detection range
flashing: program function |
| LED red |
solid: temperature/program plug not connected
flashing: fault or program function object not detected |
| Temperature/TEACH-IN connector |
Temperature compensation , Evaluation range programming , output function setting |
| Electrical specifications |
| Operating voltage |
10 ... 30 V DC , ripple 10 %SS |
| Power consumption |
≤ 900 mW |
| Interface |
| Interface type |
RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit |
| Input/Output |
| Synchronization |
bi-directional
0 level -UB...+1 V
1 level: +4 V...+UB
input impedance: > 12 KOhm
synchronization pulse: ≥ 100 μs, synchronization interpulse period: ≥ 2 ms |
| Synchronization frequency |
|
|
Common mode operation |
max. 30 Hz |
|
Multiplex operation |
≤ 30 Hz / n , n = number of sensors , n ≤ 5
|
| Output |
| Output type |
1 current output 4 ... 20 mA
1 voltage output 0 ... 10 V |
| Switch-on delay |
< 150 ms |
| Resolution |
evaluation range [mm]/4000, but ≥ 0.35 mm |
| Deviation of the characteristic curve |
≤ 0.2 % of full-scale value |
| Repeat accuracy |
≤ 0.1 % of full-scale value |
| Load impedance |
current output: ≤ 500 Ohm
Voltage output: ≥ 1000 Ohm |
| Temperature influence |
≤ 2 % from full-scale value (with temperature compensation)
≤ 0.2 %/K (without temperature compensation) |
| Approvals and certificates |
| EAC conformity |
TR CU 020/2011 |
| UL approval |
cULus Listed, General Purpose |
| CSA approval |
cCSAus Listed, General Purpose |
| CCC approval |
CCC approval / marking not required for products rated ≤36 V |
| Ambient conditions |
| Ambient temperature |
-25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature |
-40 ... 85 °C (-40 ... 185 °F) |
| Mechanical specifications |
| Connection type |
Connector M12 x 1 , 5-pin |
| Degree of protection |
IP65 |
| Material |
|
|
Housing |
stainless steel (1.4305 / AISI 303)
PBT plastic parts |
|
Transducer |
epoxy resin/hollow glass sphere mixture; polyurethane foam |
| Mass |
170 g |
